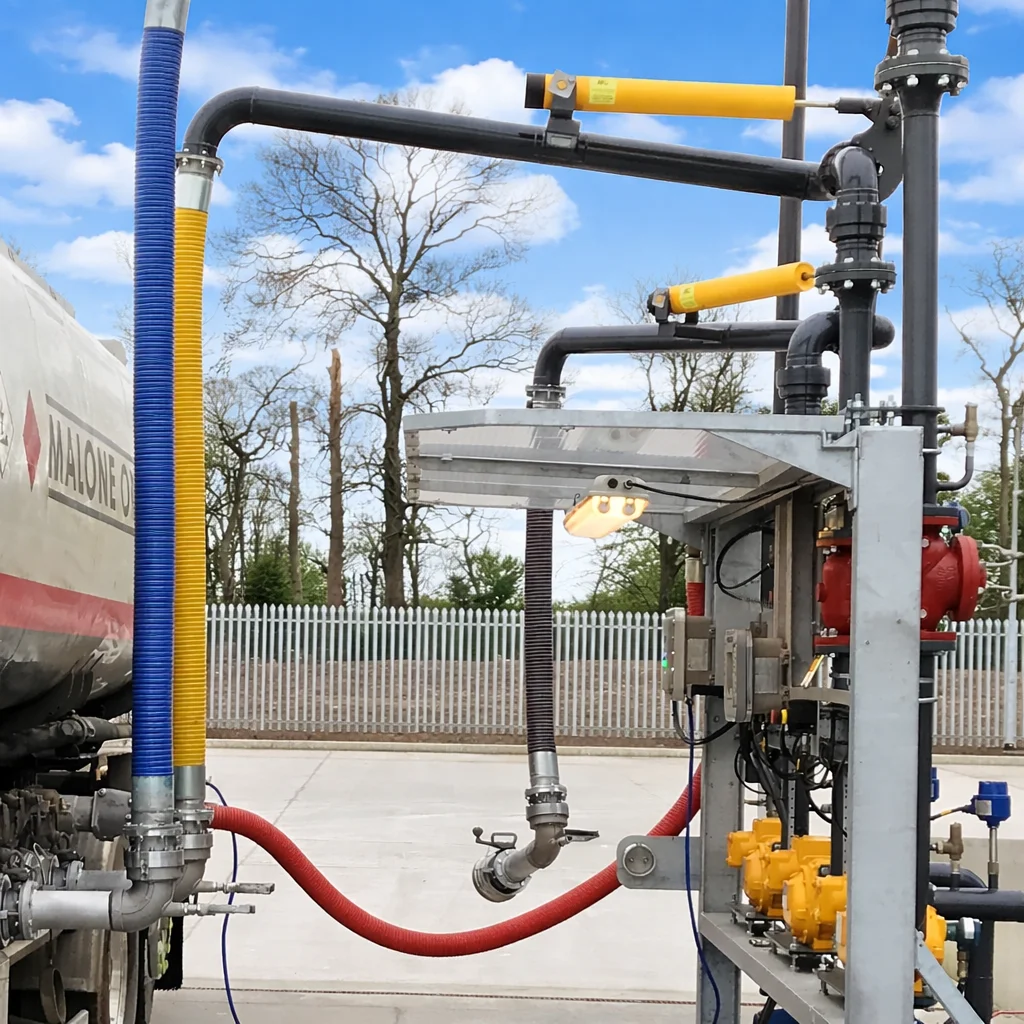

Bottom Loading Arm

Our 445 series, 4” Bottom Loading Arm is robust in design and can equally be specified for Fuel depot loading skids or large mainstream fuel terminal gantries where bottom loading rates of up to 2500 LPM are required. Fitted as standard to our range of depot loading skids, the 445 is also a perfect solution for new terminals or top load to bottom loading conversions.

Key Details

The 445 Balance mechanism is manufactured from carbon steel and incorporates hardened steel swivel bearing races. An adjustable spring balance assembly makes the arm very light and easy to manoeuvre whilst also providing height adjustment to cater for longer or shorter drop hoses. Arms can be supplied with composite or stainless steel braided hoses, product ID sleeves for diesel, kerosene and gas oils, bottom swivel with handle and quick release loading couplers.
